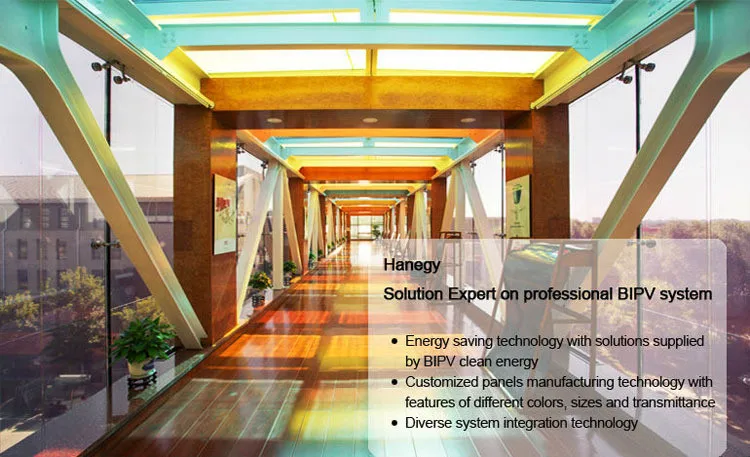

Hanergy solar skylight of shopping mall corridor with cigs solar cell

FOB Reference Price:Get Latest Price
$650.00 - $800.00 / Square Meters | 20 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hanergy
Model Number:
BIPV
Solar Power (W):
customized
Specification:
Normal
Application:
Commercial
Output Voltage (V):
69v
Load Power (W):
customized
Work Time (h):
8h
Transmittance:
0%-40%
Color:
customized
Size:
customized
Type:
amorphous solar panel
Structure:
3.2TCO glass+1.14PVB+6.0Tempered glass+12A+6.0Tempered glass
Side Juction Box:
optional
EPC/Panel:
optional
Solar panel:
Oerlikon
Supply Ability
Supply Ability:
1000000000 Watt/Watts per Year
Packaging & Delivery
Packaging Details
standard package with pallets and cartoons
Port
tianjin
Lead Time :
Shipped in 15 days after payment


   Solution

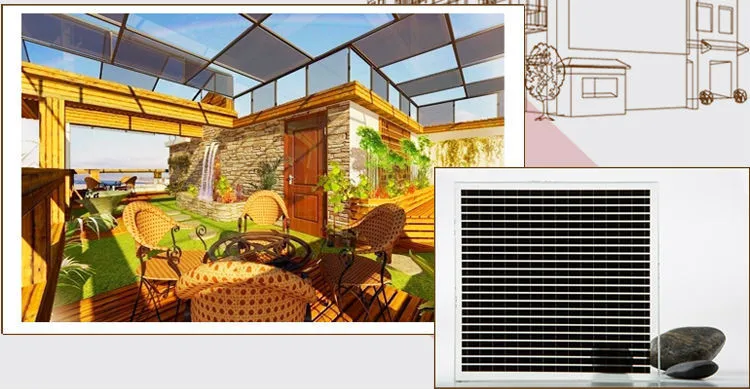

Solar Skylight Villa:

Carved translucent Panel:

  • 5% to 30% transmittance options, meeting different lighting needs.

  • Brand new PIN/PIN/PIN Triple-junction a-Si/Ge technology, ensuring the cell conversion efficiency.

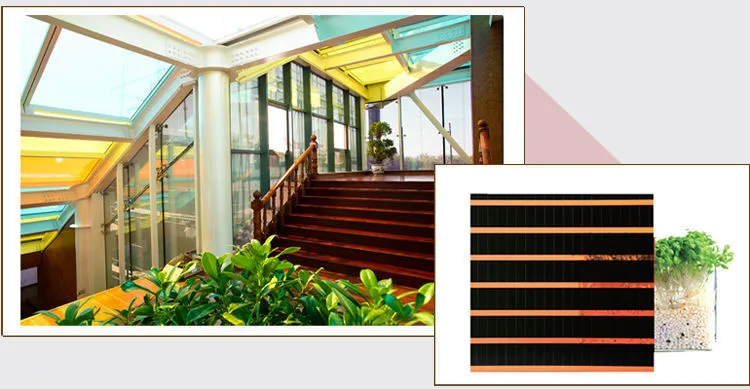

Colored translucent Panel:

  • Various colors make your buildings outstanding.

  • Good optical transparency, feeling warm sunshine anytime and anywhere.

  • Brand new PIN/PIN/PIN Triple-junction a-Si/Ge technology, ensuring the module conversion efficiency.

Hollow Panel:

  • 30-40dB noise pollution's reduction, enjoying a quiet and peaceful space.

  • Heat preservation, thermal insulation, leading a comfortable life in severe weather.

  • Brand new PIN/PIN/PIN Triple-junction a-Si/Ge technology, ensuring the photoelectric conversion efficiency.

Carved translucent Solar Panel

Maximum Power(W)51Length(mm)1245Area(m2)0.79
Maximum Power Voltage (V)69Width(mm)635Junction Box TypeBack connecting boxes
Maximum Power Current (A)0.74

Height(mm,Junction Box not included)

9.7Junction Box ClassIP67
Power Output Tolerance(W)0/+2Weight (kg)18.6Cable Length(mm)450

Colored translucent Solar Panel

Maximum Power(W)51Length(mm)1245Area(m2)0.79
Maximum Power Voltage (V)69Width(mm)635Junction Box TypeSide Junction box
Maximum Power Current (A)0.74

Height(mm,Junction Box not included)

9.7Junction Box ClassIP67
Power Output Tolerance(W)0/+3Weight (kg)18.6Cable Length(mm)450

Hollow Solar Panel

Maximum Power(W)45Length(mm)CustomizedArea(m2)Customized
Maximum Power Voltage(V)64Width(mm)CustomizedJunction box TypeSide Junction box
Maximum Power Current (A)0.71Height(mm,Junction Box not included)9.7Junction Box ClassIP67
Power Output Tolerance(W)0 / +2Weight (kg)CustomizedCable Length(mm)450


   BIPV Applications

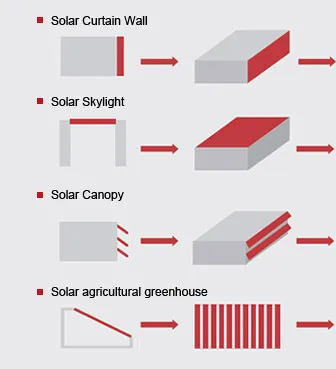

According to the different situations, functions and installation methods, BIPV applications could be divided into solar curtain wall, solar canopy, solar skylight, solar noise barrier, solar agricultural greenhouse and etc.

Replace hollow glass, thermal insulation, noise reduction function

Meet the demand of architectural lighting; provide power and energy saving

Provide power and shelter from sun as building components

Provide power with no additional area needed



   The Influence Of Environments On Generated Energy

The power generation depends on the quantity of the Installed capacity,your geographical location and the situation of the weather. Hereby,we will introduce the impacts of temperature, period of time and seasons on the generated energy.

The influence of daytime and night on generated energy

Winter:The daytime of the winter is shorter and the irradiation intensity is weaker,the capacity will be reduced accordingly.

Daytime:The stronger the sunshine, the higher generating capacity.

The influence of seasons on generated energy

Night: Before the sun rises up and after it goes down,the system output is zero

Summer: The daytime of the summer is longer and the irradiation intensity is stronger,The influence of the cloud cover amount on power generation.

The influence of cloud cover on power generation

Clear day:When clear days, the performance of the system will be certain to improve.

Rain day:If the clouds block the sunshine,the power generation will be reduced accordingly.



   Certificate



   Flow Diagram

Warranty:

  • Limited Warranty (repair, exchange and refund) :

    plastic sheets-5 years, hollow panel within 10 years.

  • Limited Warranty for STC average output power :

    since warranty date starts 96%@2yrs;90%@10 yrs;80%@25yrs.

Note: Relative to Standard Test Conditions (STC):
Solar irradiance intensity of 1000 W/m2
Cell Temperature at 25°C
AM1.5 solar reference spectrum (ASTM E892)



Flow Diagram:



   Company Profile

Hanergy Holding Group Ltd.

Hanergy Holding Group Ltd. is a multinational clean energy company, as well as the world's largest thin-film solar power company, committed to changing the world by clean power. Established in 1994, the company is headquartered in Beijing and has more than 10,000 employees. It has branches in provinces all over China as well as in the Americas, Europe and the Middle East, Asia-Pacific, Africa and other regions, with core businesses covering hydropower, wind power and thin-film solar power.


At present, Hanergy’s total installed capacity of hydropower projects exceeds 6GW, and its total installed capacity of wind power projects is 131MW. In the field of solar power, the company engages in the integration of the entire thin-film value chain, covering R&D, high-end equipment manufacturing, thin-film solar module production and construction of thin-film solar power plants. It has invested in the construction of thin-film solar R&D and manufacturing bases throughout China with a total production capacity of 3GW. In addition, Hanergy has entered into thin-film solar power plant construction agreements that total a capacity of about 10GW. Through global technical integration and independent innovation, Hanergy has become a world leader in thin-film solar technology. The maximum research conversion efficiency of its copper indium gallium selenide (CIGS) technology has reached 21%, as certified by Germany’s Fraunhofer Institute for Solar Energy Systems (ISE), and its gallium arsenide (GaAs) technology’s research conversion efficiency has reached 30.8%, as certified by the U.S.’s National Renewable Energy Laboratory (NREL).


Thin-film solar technology enables cutting-edge features such as flexibility, light weight, superior low light performance, and diversified color and shapes. These unique qualities make it adaptable to a wide range of applications, including Building Integrated Photovoltaics (BIPV), flexible rooftop, residential power, automobile power, electronics, as well as other consumer and specialty products. In February 2014, Hanergy was selected by theMIT Technology Reviewas one of the 50 smartest companies in the world. It was the only Chinese energy company honored with the award.



   Global Strategic Layout

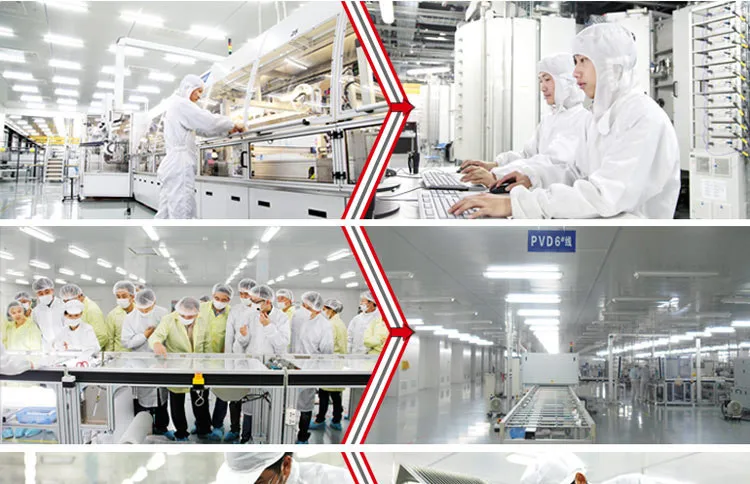

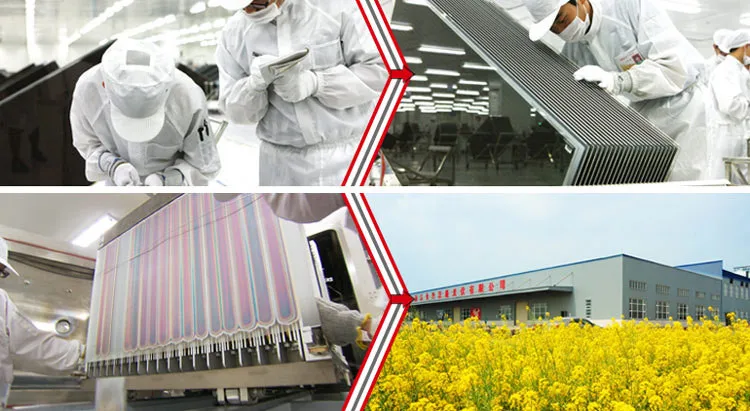

   Production Lines And Factories

Hanergy Mottos

It is our faith to change the world by clean power.Integrity, generosity, intelligence and inclusiveness are our characters. Foresight and pragmatism are our qualities. Loyalty, responsibility and ambition are our basic requirements. Cutting-edge technology nsures longevity.
The secret of development is to beat expectations.Success is determined by these three factors: people, people and people.The absence of ethics negates everything. Integrity is essence. Communicate openly and frankly.United we triumph. Passionately begun, halfway done.
Growth is a process of overcoming adversities.Be curious. Be grateful.Execution without any excuses. Hanergy, no impossibility!
Hanergy grows with nations.



   FAQ

Q: How to place your order after choosing the product?

A:

Please contact the customer service representative and fill in the intention list,after that, our local company personnel will offer on-site measurement and installation for you.



Q: How to deal with system malfunction In-Warranty Period?

A:

Please contact the relative customer manager, we will provide proper replacement or repair services for you.



Q: How about the repair & warranty?

A:

We provide three-year product warranty for free and are responsible for the paid maintenance beyond three years.



Q: How to maintain PV systems?

A:

Cleaning the products is the primary task in maintaining the system. It is necessary to use labor to wipe the products once a month during the dry season except the rainy season. You should promptly remove the thick snow to avoid the melting snow affecting the average electricity production. Also, it is important to timely clear the leaves and trees or impurities shading the module, etc.



Q:Where to install the monitoring device of distributed photovoltaic (pv) grid system ?

A:

Photovoltaic (pv) monitoring system which implements the data collection of each link can be installed outdoor for saving space.User will get the feedback finally in the form of reports, graphs and so on after the remote service platform receives and analyzes the related data.
